MANOCOMB Pressure Switch Model TM

Pressure Switch, Pressure Monitor, Pressure Limiter, Safety Pressure Limiter for Pressure and Vacuum
with integrated pressure transmitter

  • Description
  • Technical Data
  • Dimensions
  • Electrical Data
  • Order-Codes

MANOCOMB® Pressure Switch Model TM

• friction-free force-balance measuring system
• very high repeatability
• extraordinary long-term stability
• measuring ranges from -1... 0 bar up to 0 - 400 bar
• comfortable setpoint adjustment on calibrated scale
• optionally integrated pressure gauge
• approved as Pressure Monitor / Pressure Limiter
• integrated pressure transmitter

Description
The MANOCOMB®-TM is a precision pressure switch for measuring pressure, differential pressure and vacuum of gasous or liquid, also aggressive, chrystallizing and highly viscous media.

Operating Principal
The operation is based on force-balance - per change-over contact a metal bellow is available, which is opposed by a precison spring with an adjustable force.
Once the process pressure overcomes the set force the change-over is triggered.
The contact adjustment is done by removing the cover and turning the thumb wheel to the desired set point.
The set point adjustment can be comfortably read from the set point scale. No reference instrument is needed.
The measuring system, which actuates the switching contact works friction-free, resulting in minimal wear. No maintenance or spare parts are needed!

Integrated Pressure Transmitter / Integrated Pressure Gauge
The integrated pressure transmitter (0,5% FS) delivers a continues output signal (4 - 20 mA or 0 - 10V).
The optionally integrated pressure gauge (class 1.0) visualizes the actual process pressure right next to the set point indicator.

Approvals (depending on configuration)
• TÜV approval (VdTÜV Merkblatt Druck 100)
• Pressure Equipment Directive 97/23/EG
• GOST-R (Proof of Conformity with Russian quality standards and regulations)

Technical Data

Switching Function Description
1K 1x change-over contact
1KA 1x change-over contact, 1x integrated gauge
2K 2x change-over contact
2KA 2x change-over contact, 1x integrated gauge



Technical Data Standard Option
Function mechanical pressure switch; force-balance measuring systems with bellows sensor; with integrated analogue output
Life Cycle at least 10 Mio switch cycles
Pressure Ranges 0 - 1 bar; 0 - 1,6 bar; 0 - 2,5 bar; 0 - 4 bar; 0 - 6 bar; 0 - 10 bar; 0 - 16 bar; 0 - 25 bar; 0 - 40 bar; 0 - 60 bar
High Pressure Ranges 0 - 100 bar; 0 - 160 bar; 0 - 250 bar; 0 - 400 bar
Vacuum Ranges -1…0 bar;
Over Pressure Safety 1,5x FS
Vacuum Safety -1 bar
Housing Material enhanced plastics with transparent cover
Wetted Parts Material brass; Al2O3 Stainless Steel 1.4571 (AISI 316Ti); Al2O3
Permissiable Media Temperature -20...+80°C (+130°C in stainless steel version)
Permissable Ambient Temperature -20...+80°C
Temperature Deviation approx. 1% per 20°C
Adjustment Temperature 20°C on request
Swicthing Contact 1 or 2 switching contacts (SPDT) - for details see switching contacts overview
Contact Adjustment Accuracy < 1,0% FS
Switching Differential (Hysteresis) see switching contacts overview
Repeatability < 0,5% FS
Analogue Output 4 - 20 mA (2-wire) 0 - 10 V (3-wire)
Supply for  Analogue Output 12 - 32 VDC
Accuracy of Analogue Output < 0,5% FS
Accuracy of integrated Gauge Class 1.0 (available for pressure range -1...0 bar / 0 - 1 bar...0 - 250 bar
Process Connection 1/4“ BSP male (EN837) 1/2“ BSP male (EN 837); others on request
Electrical Connection M20 cable gland; terminal blocks inside housing for cable 2,5mm² ISO 4400 plug; Harting HAN7D/8U plug
Weight approx. 1.5 kg (depending on switching function)
Protection IP65
Other Options
Scales in different units (e.g. MPa, kPa, psi, etc.); Dual Scale; Customer specific Scales; silicone free version; version for O2 service

Dimensions

Standard Version (1K,1KA)
Standard Version (1K,1KA)

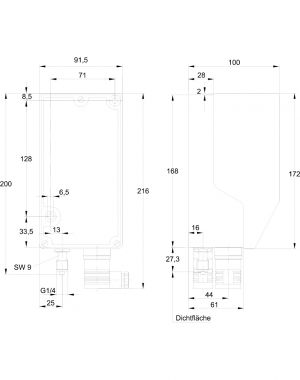

Standard Version (2K, 2KA)
Standard Version (2K, 2KA)

Electrical Data

Category AC-12 / DC-12

Switching Capacity

max. permissible continuous current Imax [A] with ohmic load

Type 24V 48V 110V 240V SD1
Standard A (AC) 5 5 5 5 < 1,0 %
A (DC) 1 0,5 - -
MG2 A (AC) 1 1 1 - < 1,5 %
A (DC) 1 0,5 0,2 -
MH A (AC) 5 5 5 5 < 1,5 %
A (DC) 1 0,5 - -
CS A (AC) 5 5 5 5 < 2,0 %
A (DC) 5 2 0,4 0,2
CH A (AC) 12 12 10 10 < 2,0 %
A (DC) 10 2 0,4 0,2
CZ3 A (AC) 5 5 5 5 < 2,0 %
A (DC) 5 2 0,4 0,2

1    typical switching differential (hysteresis) from 1 - 250 bar; Deviation in % of FS
2    micro switch with gold-plated contacts
3    micro switch with forced circuit opening

Order Codes

most common options

Order Codes M 0 9 x x x - x - x x x
Switching Function 1K 0
1KA 1
2K 2
2KA 3
Material brass 1
stainless steel 2
Switching Contact Standard + 4 - 20 mA 1
MG + 4 - 20 mA 2
Standard + 0 - 10 V 8
MG + 0 - 10 V 9
Pressure Ranges -1...0 bar 006
0 - 1 bar 020
0 - 1,6 bar 022
0 - 2,5 bar 023
0 - 4 bar 024
0 - 6 bar 025
0 - 10 bar 026
0 - 16 bar 027
0 - 25 bar 028
0 - 40 bar 029
0 - 60 bar 030
0 - 100 bar 031
0 - 160 bar 032
0 - 250 bar 033
0 - 400 bar 035
Process Connection G 1/4 B, brass A
G 1/4 B, stainless steel B
G 1/2 B, brass C
G 1/2 B, stainless steel D
Electr. Connection 1x plug ISO 4400 (4-pin) + 1x Stecker ISO 4400 (3-pin) - only 1K - only 4 - 20 mA P
2x plug ISO 4400 (4-pin) - only 1K Q
1x plug 7-pin + 1x plug ISO 4400 (4-pin) - nur 2K S
Further Options no further options O
cleaned for O2 service A
cover lead-sealable W
